Load and Plot from a File#
Read a dataset from a known file type.
We try to make loading a mesh as easy as possible - if your data is in one
of the many supported file formats, simply use pyvista.read() to
load your spatially referenced dataset into a PyVista mesh object.
The following code block uses a built-in example file and displays an airplane mesh.
import pyvista as pv
from pyvista import examples
help(pv.read)
Help on function read in module pyvista.core.utilities.fileio:
read(filename: 'PathStrSeq', force_ext: 'str | None' = None, file_format: 'str | None' = None, progress_bar: 'bool' = False, *, cls: 'type[DataObject] | None' = None, validate: 'bool | None' = None) -> 'DataObject'
Read any file type supported by ``vtk`` or ``meshio``.
Automatically determines the correct reader to use then wraps the
corresponding mesh as a pyvista object. Attempts native ``vtk``
readers first then tries to use ``meshio``. :py:mod:`Pickled<pickle>`
meshes (``'.pkl'`` or ``'.pickle'``) are also supported.
Remote URIs (``https://``, ``s3://``, etc.) are downloaded to a
temporary file automatically. Install ``fsspec`` for full protocol
support (``pip install pyvista[io]``); ``pooch`` is used as a
fallback for HTTP(S). Third-party reader plugins registered via
:func:`pyvista.register_reader` are also checked.
See :func:`pyvista.get_reader` for list of vtk formats supported.
.. include:: /api/utilities/mesh_io.rst
.. note::
See https://github.com/nschloe/meshio for formats supported by
``meshio``. Be sure to install ``meshio`` with ``pip install
meshio`` if you wish to use it.
.. versionadded:: 0.45
Support reading pickled meshes.
.. warning::
The pickle module is not secure. Only read pickled mesh files
(``'.pkl'`` or ``'.pickle'``) you trust. See :py:mod:`pickle`
for details.
See Also
--------
pyvista.DataObject.save
Save a mesh to file.
Parameters
----------
filename : str, Path, Sequence[str | Path]
The string path to the file to read. If a list of files is
given, a :class:`pyvista.MultiBlock` dataset is returned with
each file being a separate block in the dataset.
force_ext : str, optional
If specified, the reader will be chosen by an extension which
is different to its actual extension. For example, ``'.vts'``,
``'.vtu'``.
file_format : str, optional
Format of file to read with meshio.
progress_bar : bool, default: False
Optionally show a progress bar. Ignored when using ``meshio``.
cls : type, optional
Expected concrete type of the returned mesh. When given, the
result is checked with :func:`isinstance` and a
:class:`TypeError` is raised on mismatch. Static type checkers
(``mypy``, ``pyright``) use this to narrow the return type to
``cls`` directly, so callers do not need ``typing.cast`` or a
manual ``assert isinstance`` to access subclass-specific
attributes, e.g. ``pv.read('file.vtu', cls=pv.UnstructuredGrid)``.
validate : bool, optional
Forwarded to :func:`pyvista.wrap` as the ``validate`` keyword when
using a ``vtk`` reader. When ``None`` (the default), honors
:attr:`pyvista.core.config.Config.validate_on_wrap`. Pass ``False`` to
skip the cheap array-length sanity check on very large trusted
files. Has no effect for ``meshio`` or pickle code paths.
.. versionadded:: 0.48
Returns
-------
pyvista.DataSet | pyvista.MultiBlock
Wrapped PyVista dataset. When ``cls`` is given, an instance of
``cls`` is returned instead.
Examples
--------
Load an example mesh.
>>> import pyvista as pv
>>> from pyvista import examples
>>> mesh = pv.read(examples.antfile)
>>> mesh.plot(cpos='xz')
Narrow the return type to a specific class. This avoids the need for
a manual ``cast`` when working with type checkers such as ``mypy``
or ``pyright``.
>>> mesh = pv.read('mesh.vtu', cls=pv.UnstructuredGrid) # doctest:+SKIP
Load a vtk file.
>>> mesh = pv.read('my_mesh.vtk') # doctest:+SKIP
Load a meshio file.
>>> mesh = pv.read('mesh.obj') # doctest:+SKIP
Load a pickled mesh file.
>>> mesh = pv.read('mesh.pkl') # doctest:+SKIP
PyVista supports a wide variety of file formats. The supported file extensions are listed in an internal function:
Help on function get_reader in module pyvista.core.utilities.reader:
get_reader(filename, force_ext=None)
Get a reader for fine-grained control of reading data files.
Supported file types and Readers:
.. include:: /api/readers/readers_table.rst
Parameters
----------
filename : str, Path
The string path to the file to read.
force_ext : str, optional
An extension to force a specific reader to be chosen.
Returns
-------
pyvista.BaseReader
A subclass of :class:`pyvista.BaseReader` is returned based on file type.
Examples
--------
>>> import pyvista as pv
>>> from pyvista import examples
>>> from pathlib import Path
>>> filename = examples.download_human(load=False)
>>> Path(filename).name
'Human.vtp'
>>> reader = pv.get_reader(filename)
>>> reader
XMLPolyDataReader('...Human.vtp')
>>> mesh = reader.read()
>>> mesh
PolyData ...
>>> mesh.plot(color='lightblue')

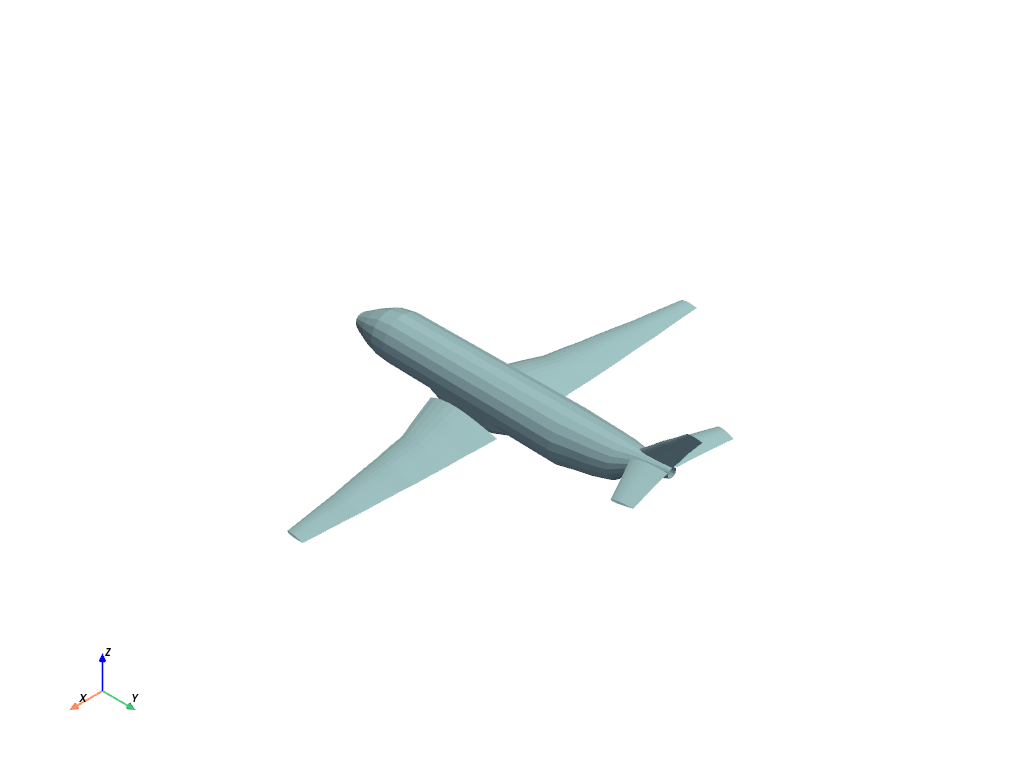

The following code block uses a built-in example file, displays an airplane mesh and returns the camera’s position:
# Get a sample file
filename = examples.planefile
filename
'/opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/pyvista/examples/airplane.ply'
Note the above filename, it’s a .ply file - one of the many supported
formats in PyVista.
Use pv.read to load the file as a mesh:
The points from the mesh are directly accessible as a NumPy array:
pyvista_ndarray([[896.994 , 48.7601 , 82.2656 ],
[906.593 , 48.7601 , 80.7452 ],
[907.539 , 55.4902 , 83.6581 ],
...,
[806.665 , 627.363 , 5.11482],
[806.665 , 654.432 , 7.51998],
[806.665 , 681.537 , 9.48744]],
shape=(1335, 3), dtype=float32)
The faces from the mesh are also directly accessible as a NumPy array:
mesh.faces.reshape(-1, 4)[:, 1:] # triangular faces
array([[ 0, 1, 2],
[ 0, 2, 3],
[ 4, 5, 1],
...,
[1324, 1333, 1323],
[1325, 1216, 1334],
[1325, 1334, 1324]], shape=(2452, 3))
Loading other files types is just as easy! Simply pass your file path to the
pyvista.read() function and that’s it!
Here are a few other examples - simply replace examples.download_* in the
examples below with pyvista.read('path/to/you/file.ext')

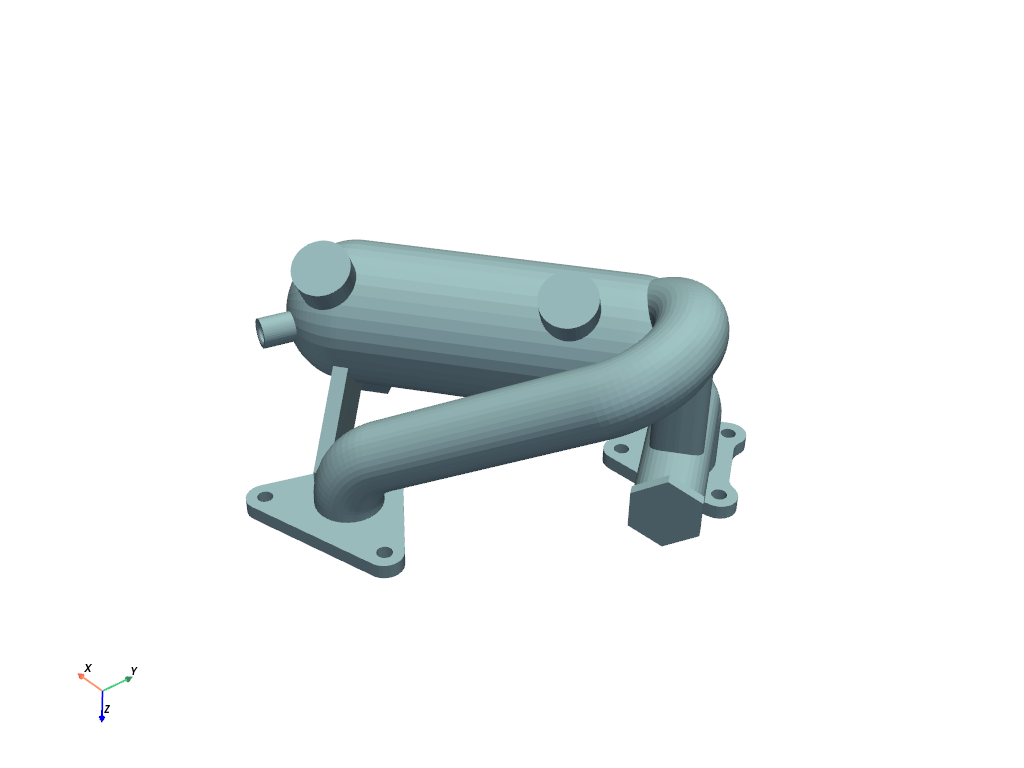

Example STL file:

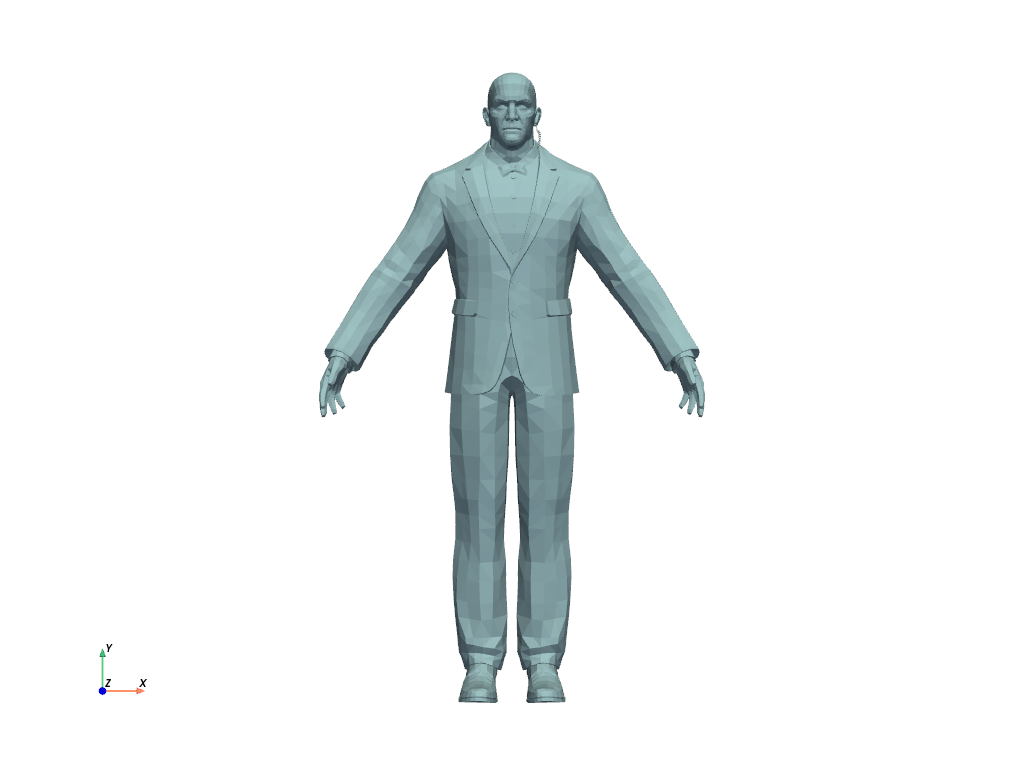

Example OBJ file

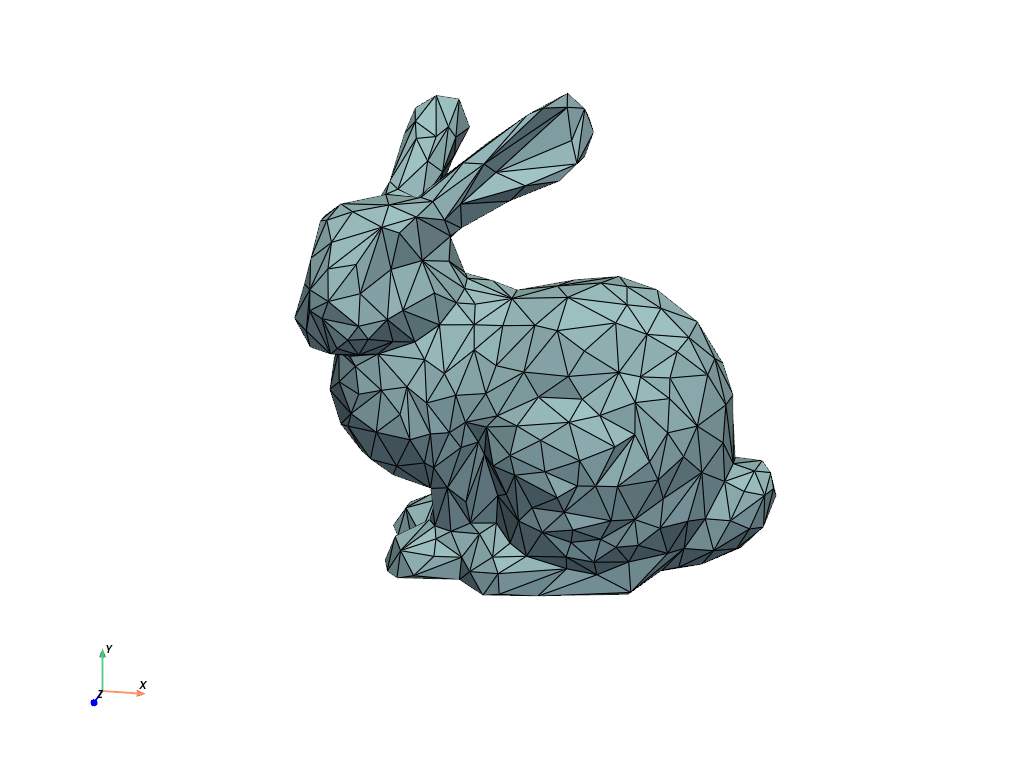

Example BYU file

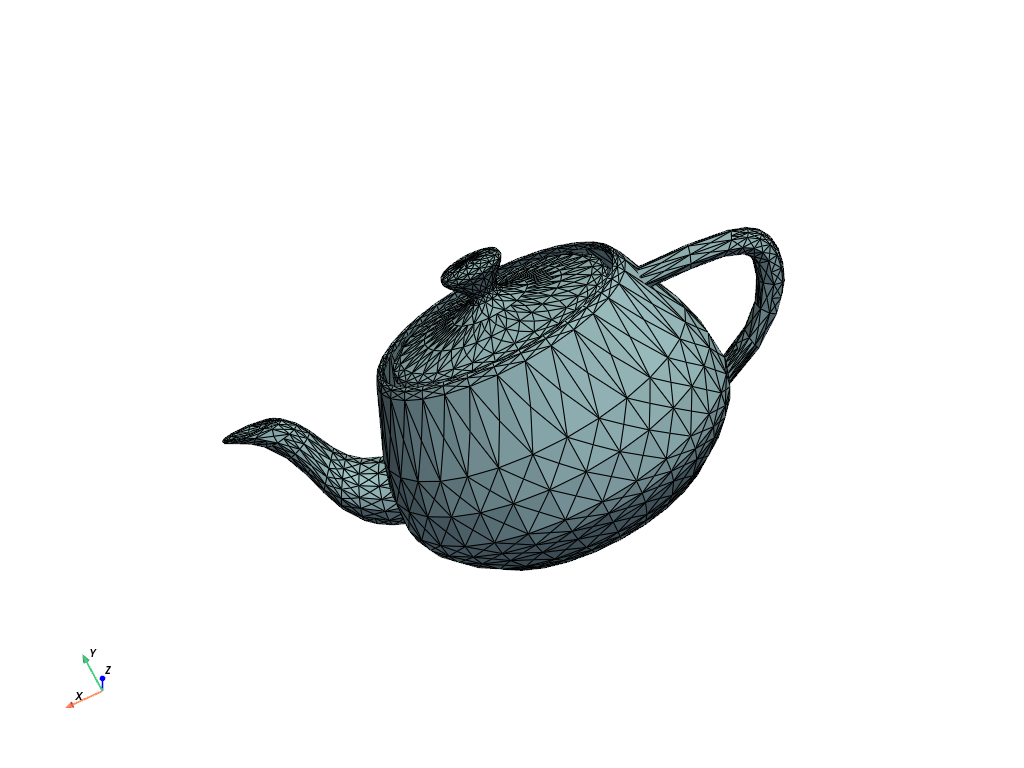

Example VTK file
Exercise#
Read a file yourself with pyvista.read(). If you have a supported file
format, use that! Otherwise, download this file:
pyvista/pyvista-tutorial
# (your code here)
# mesh = pv.read('path/to/file.vtk)
